Editor
Settings(General,ScrollBars,Tabs) [✔]
Syntax highlighting using Syntaxes file [✔]
Auto-completion using Snippets files [✔]
Support for Language Server Features [✔]
Completions [✔]
Hover [✔]
Goto definition/declaration [✔]
Find references [✔]
Rename symbol [✔]
Selection ranges [✔]
Folding regions [✔]
Code actions [✔]
Inlay hints [✔]
Diagnostics [ ]
Document symbols [ ]
Semantic token highlighting [ ]
Automatically inserts a closing Bracket [✔]
Document Formatting using 'zig fmt' [✔]
Copy Json/Xml and Paset as Zig code [ ]
Navigation
Object Browser [ ]
Build
Build [✔]
OS selection [✔]
Architecture selection [✔]
WebAssembly [✔]
Optimization selection [✔]
GUI configuration [✔]
C/C++ integration [✔]
Embedding resources [✔]
Build.zig generation [✔] (Project mode)
Build.zig.zon generation [✔] (Project mode)
ZigPackage [✔] (Folder mode)
Debug
Step execution [✔]
Set breakpoints [✔]
Variable inspection [✔]
Cross-platform Debugging [✔]
WebAssembly [ ]
Hot Reload [ ]
Profiling
CPU Usage, Memory Usage, Events, File IO [✔]
Testing
Run code tests using Test Explorer [✔]
Unit Test Debugging [✔]
Templates
Package, Project, file [✔]
Project file mode [✔]
Open folder mode [✔]
Zig Tool-chain Installer [✔]
Zig Package Installer [✔]
Help [✔]
Update Visual Studio
If your version of Visual Studio is older than the required version
for ZigVS, a version error will appear during
installation.

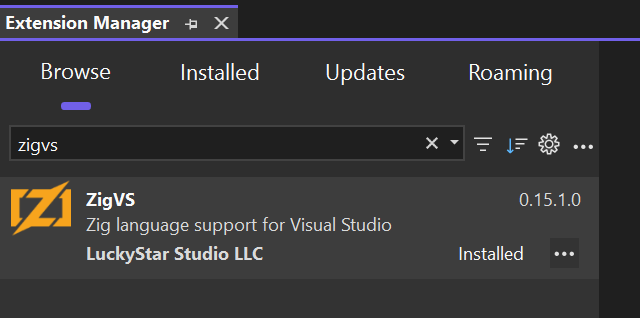

Install ZigVS from [Extension] → [Manage Extensions…] →
[Browse]
Install ZigVS from Visual
Studio Marketplace
Install Zig Compiler:
Download Zig and extract it to your
desired location.
ZigVS ver 0.15.1.0 has been tested with Zig
ver 0.15.1.
Install ZLS Language Server:
Download Zig Language Server
(zls) and place it in the same directory as the Zig
Compiler.
Set the path to a directory with Zig compiler and ZLS binaries
Set the PATH environment variable to a directory with Zig compiler and ZLS binaries

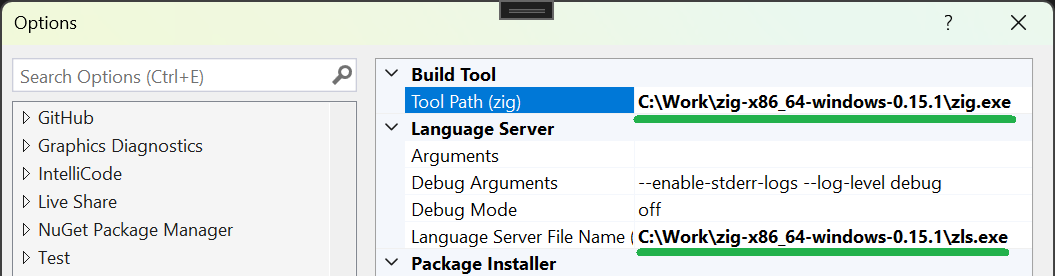

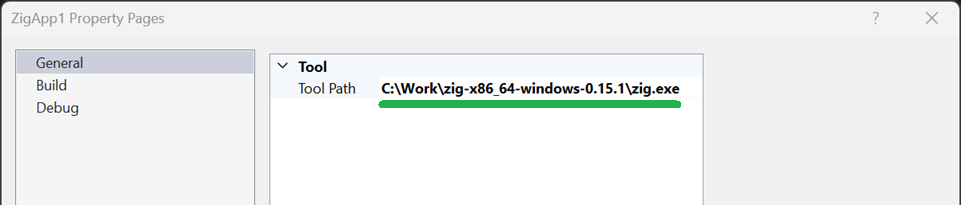

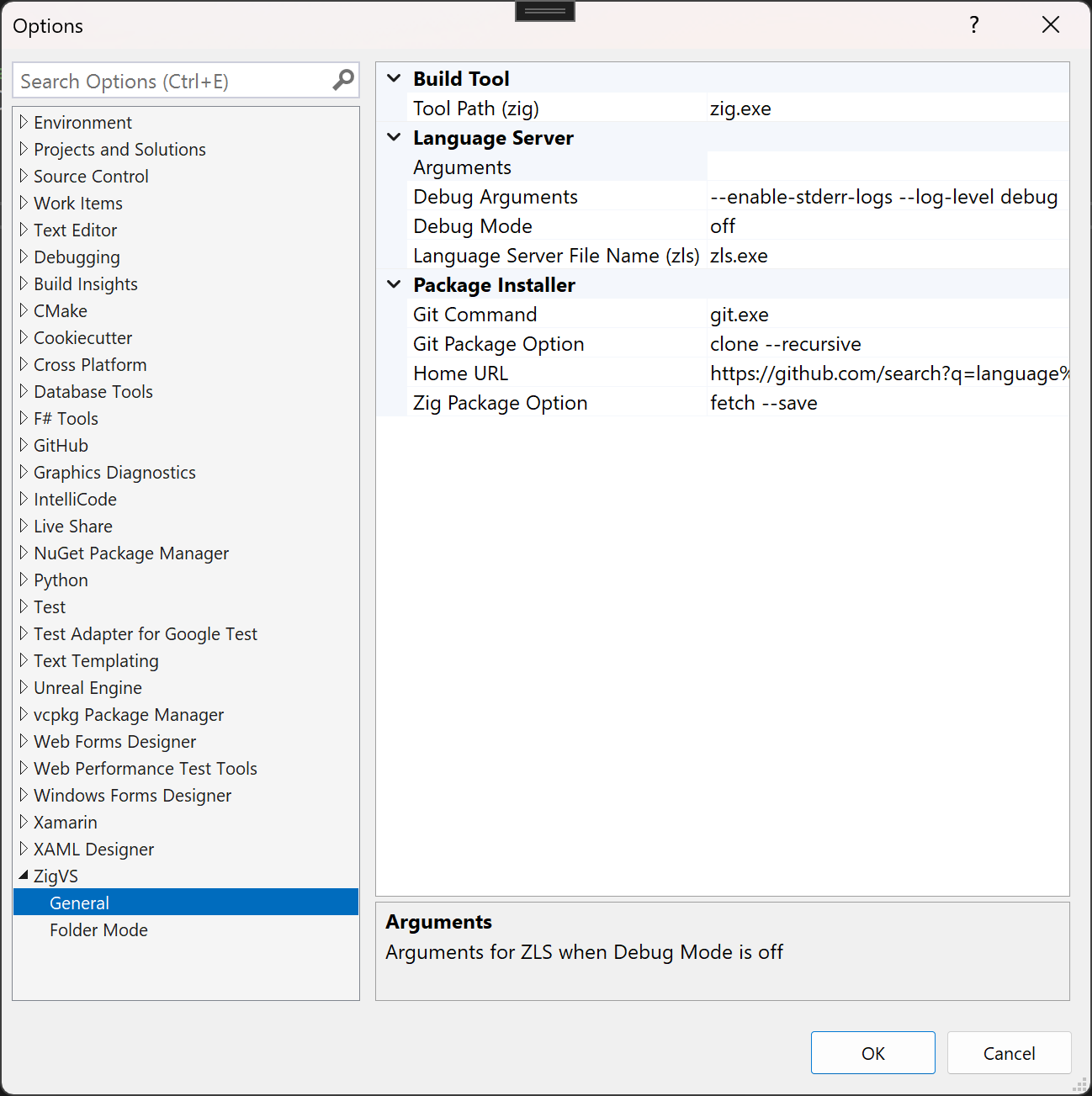

In ZigVS, enter the absolute path to zig.exe directly in [Tools] → [Options] or in the Project’s Properties.

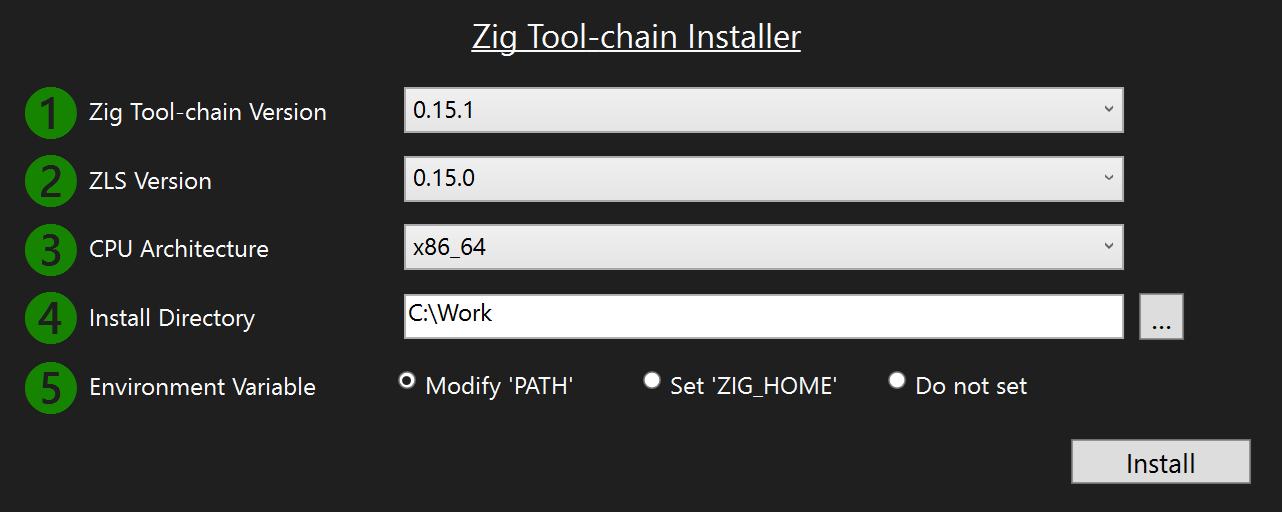

[Extensions] → [ZigVS] → [Zig Tool chain Installer]
ToolChainInstaller window will be opened
Select Zig Tool chain Version
Select ZLS Version
Select CPU Architecture
Set Install Directory
If you specify a folder without write permissions, the Install button
will not be activated. Please restart Visual Studio with Administrator
privileges
Select Environment Variable to set the path to zig.exe and zls.exe
if you want to set the path to zig.ext and zls.exe in the environment Variable ‘PATH’, select “Set Environment Variable ‘PATH’”
if you donot want to set the path in environment ‘PATH’, select “Do Not Set” and set the path to zig.exe in [Tools] → [Options] and in the Project’s Properties

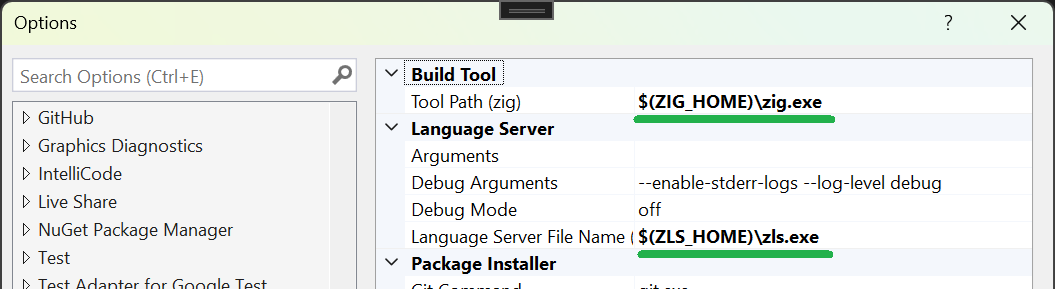

c. if you want to use other environment variable insted of
‘PATH’, select “Set Other Environment Variable ‘ZIG_HOME’” and add

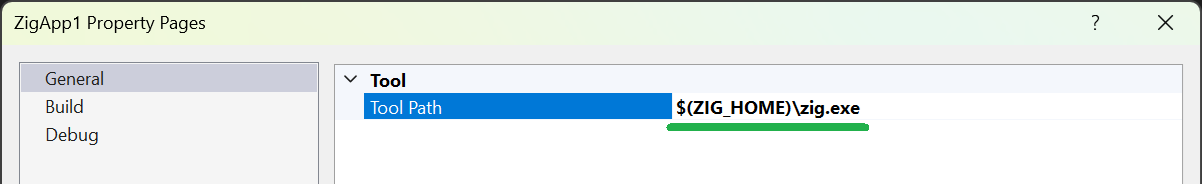

$(ZIG_HOME) in the [tool path] propery in [Tools] → [Options] and in the
Project’s Properties
Once everything is set up, the Install button will become active, so press the Install button

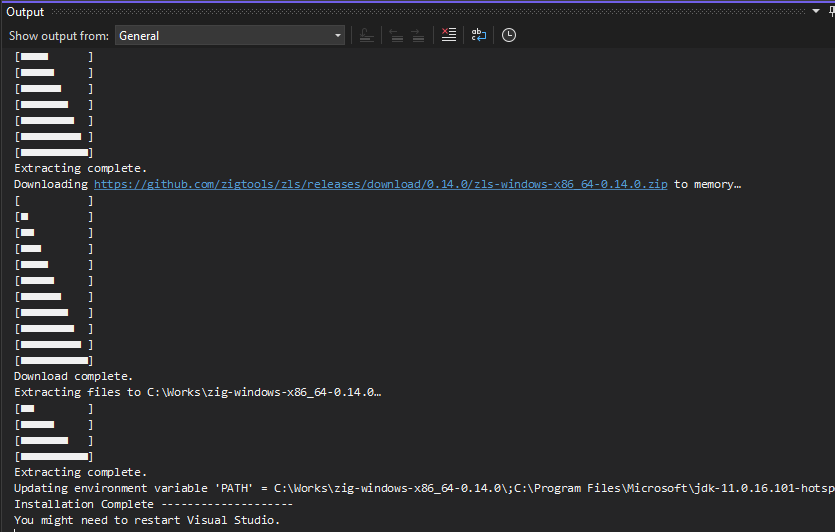

The progress and results of the installation will be displayed in
the [output window]
Note: If you see “Access to the path ‘….’ is
denied”, the following scenarios might be considered
* File in use: Please close the application that is opening the
file
* Directory without write permission: Please restart Visual Studio as
Administrator
___
Visual Studio has two modes: Project File mode and Folder mode.
Project Mode is used when developing in C++, C#, F#, and similar languages. You open project files such as .cppproj, .csproj, and .fsproj, and the file tree shows only the items that have been added to the project. Builds are not performed directly by Visual Studio but by a build tool called MSBuild. Project files can be built without Visual Studio. A “project” corresponds to what Zig calls a package. Although you can edit project files in a text editor, you can also configure them via Visual Studio’s Project Properties GUI. A solution file can contain multiple project files, allowing you to coordinate several projects to create a larger application.
Folder mode supports languages that aren’t built via project files. As in Visual Studio Code, you open a folder, and the file tree shows all files under that folder. Builds are performed by each language’s own build system.
ZigVS supports both Folder mode and Project File mode.

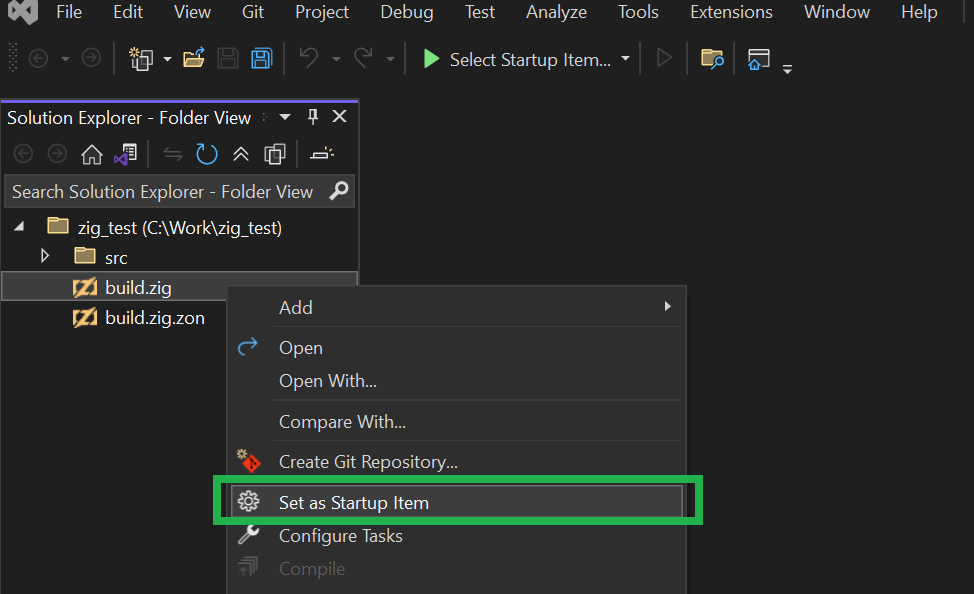

In Zig’s Folder mode, you use build.zig. As in Visual Studio Code, you open a folder that contains build.zig and set build.zig as the build file. To change the build, you need to edit build.zig, but you can still create new packages, build, debug, perform performance profiling, and run tests via the GUI just like with other projects.
In Zig’s Project mode, you use a project file called .zigproj. To start a project, create a .zigproj; to open the project, open the .zigproj. When you build the project (even from Visual Studio’s GUI), MSBuild reads the .zigproj and builds using zig.exe as the compiler and linker.
___ # How to open an existing Zig package

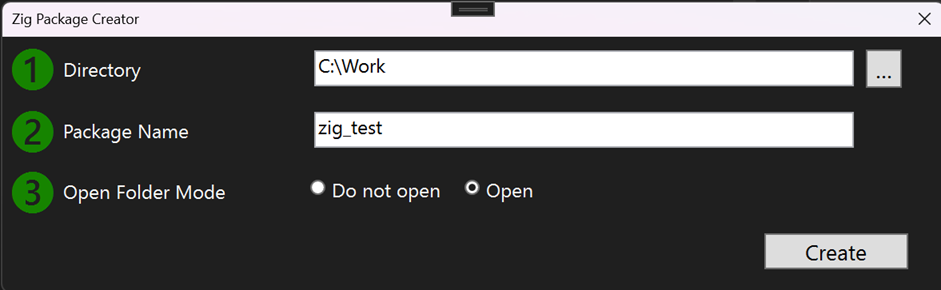

___ # How to create a new zig package
The result will be displayed in the Output window.

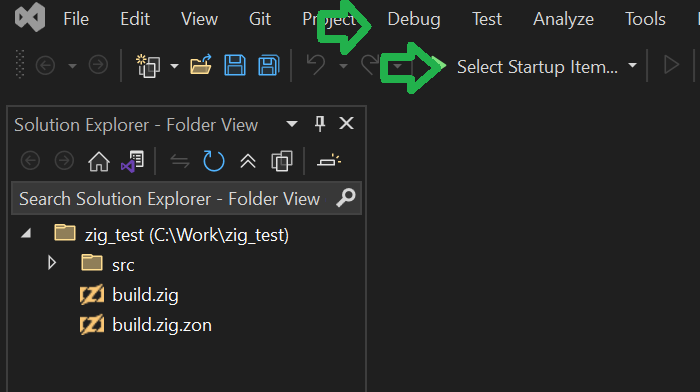

Simply opening a folder does not allow you to build or debug.
___

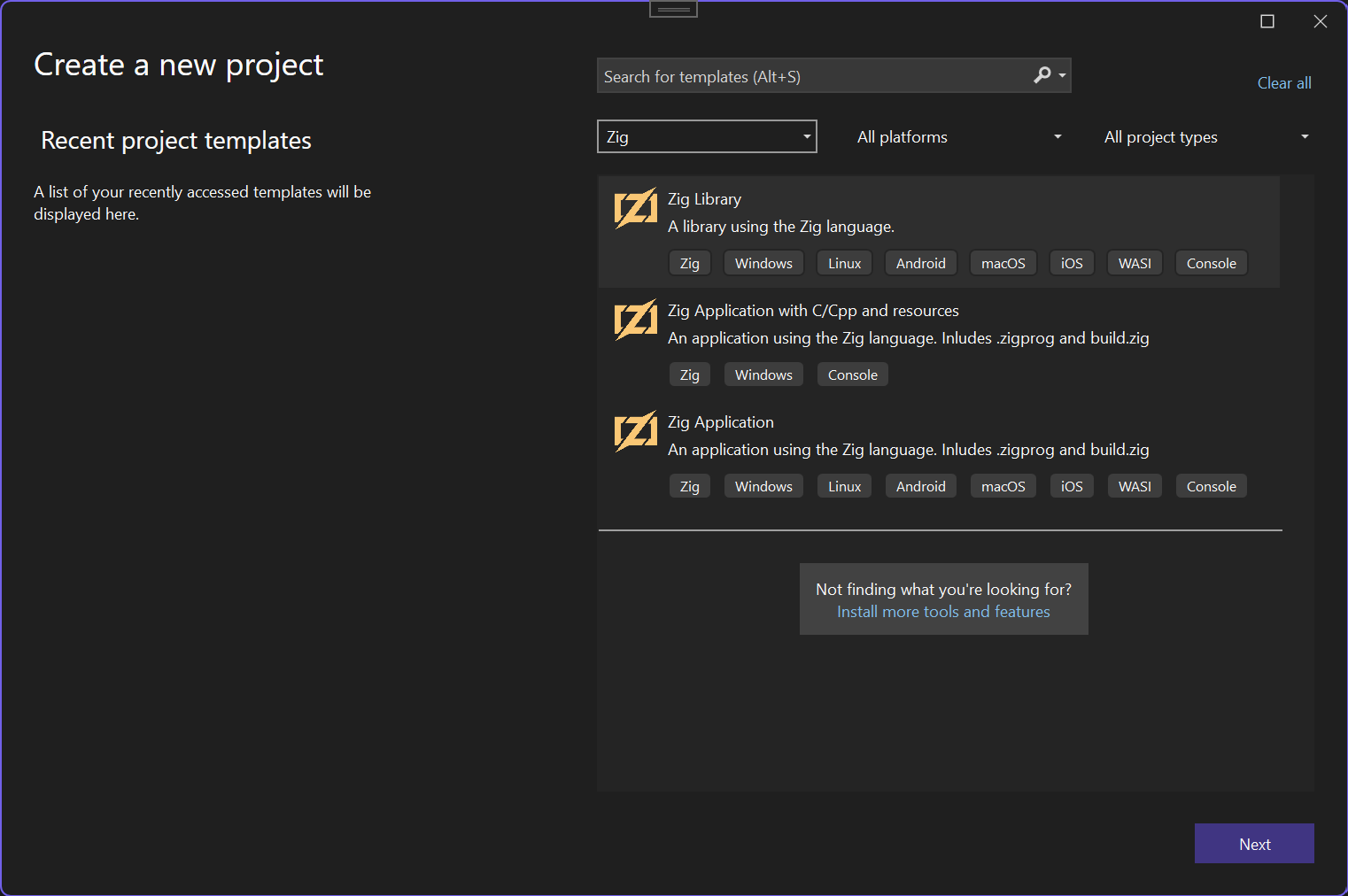

Select [File] → [New] → [Project]
The New Project wizard will appear.
Select Zig in the language filter.
Select a Zig template and use the Wizard to create the project.

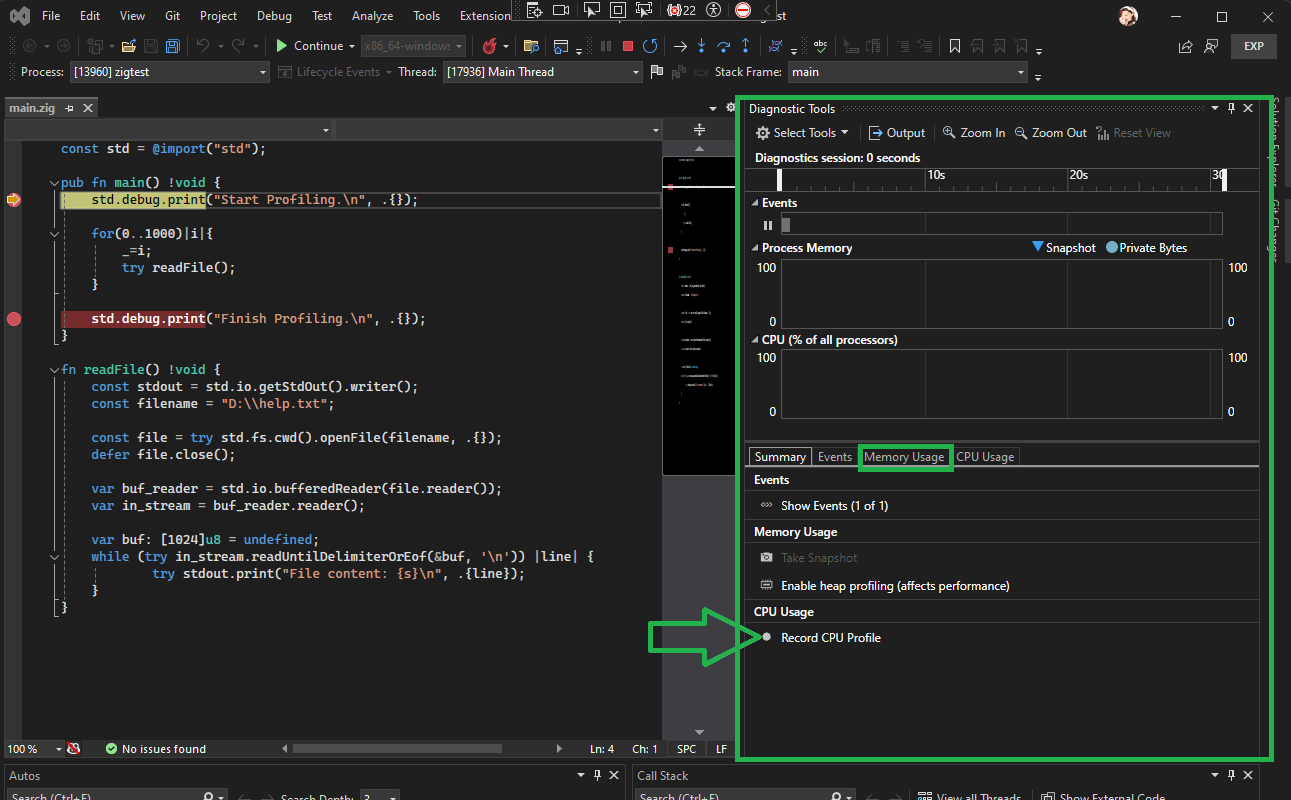

See User Manual Page ___ # Profiler
[Debug] > [Start Debugging] (or Start on the toolbar, or F5).
When the app finishes loading, the Summary view of the Diagnostics Tools appears. If you need to open the window, click Debug > Windows > Show Diagnostic Tools.
When you choose Record CPU Profile, Visual Studio will begin recording your functions and how much time they take to execute. You can only view this collected data when your application is halted at a breakpoint.

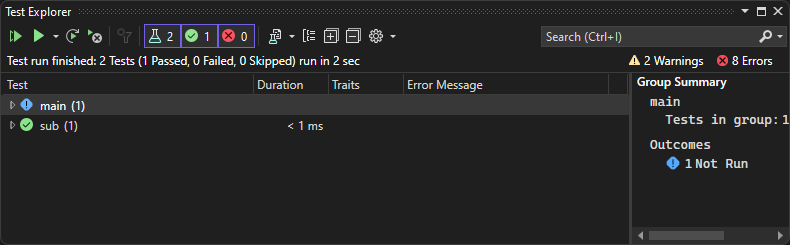

___ # Testing To perform tests, select [Test] → [Test
Explorer] to open the Test Explorer window. If .zig source code includes
unit tests, their filenames will be listed.

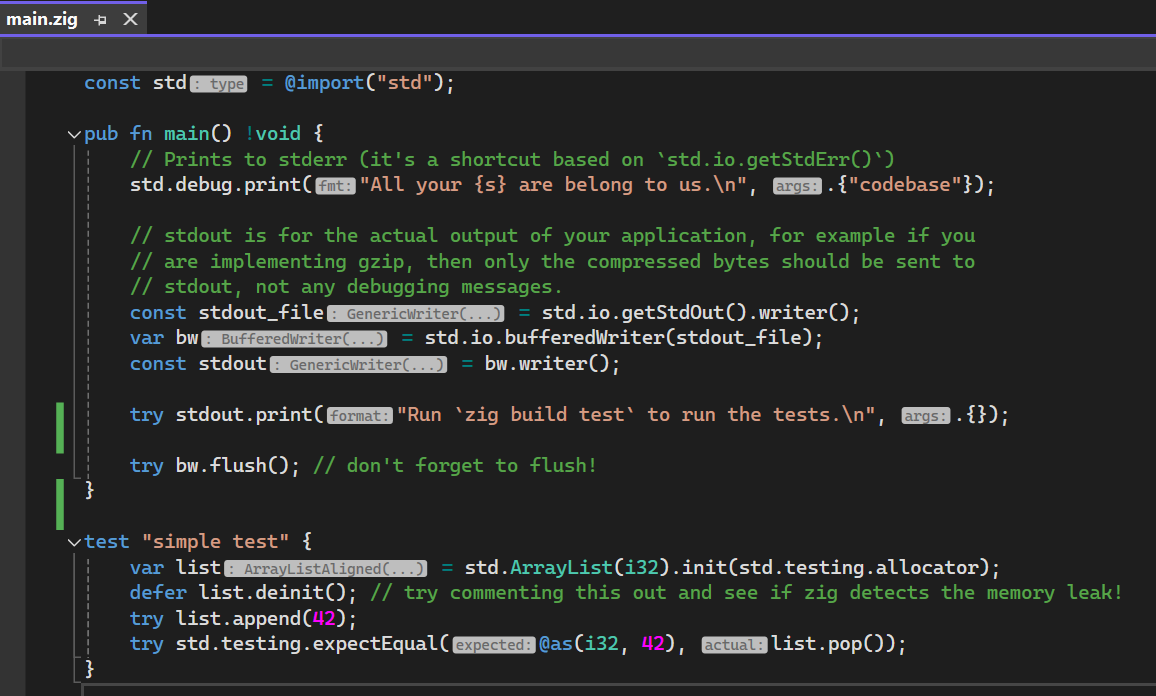

___ # Syntax Highlighting
Example of changing Literals and Operators
You can change the colors and fonts of the Syntax Highlighting. It is possible to create a more color-coded and visually appealing screen than the default settings of Visual Studio. The following Display Items can be modified.
[Tool]→[Environment]→[Fonts and Colors]→[Display items]

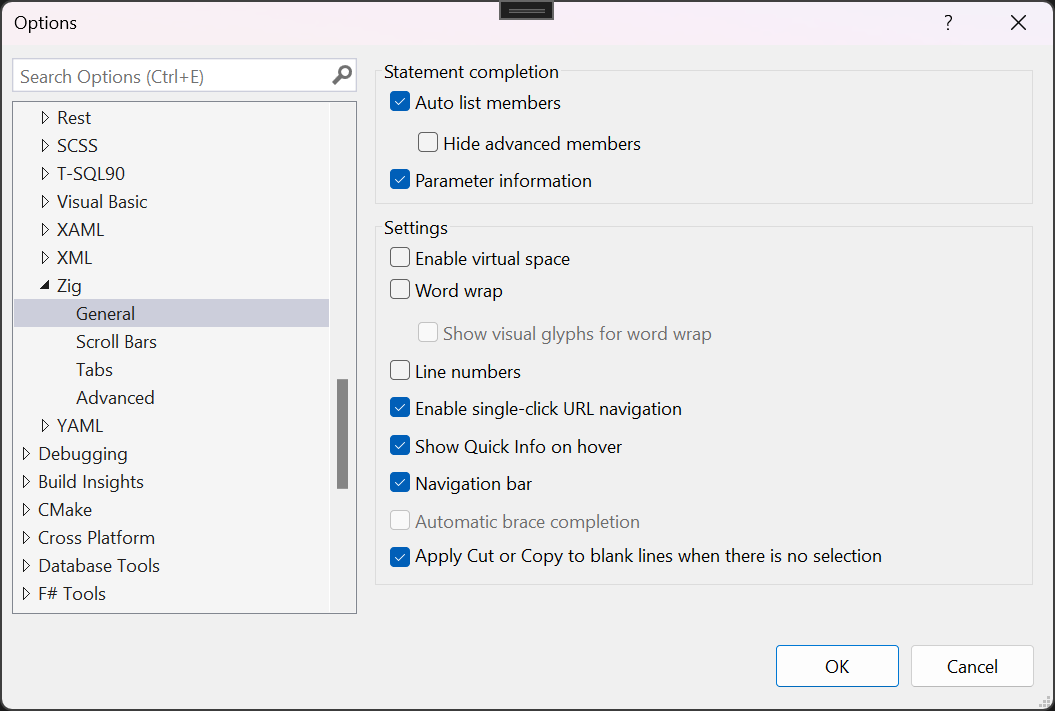

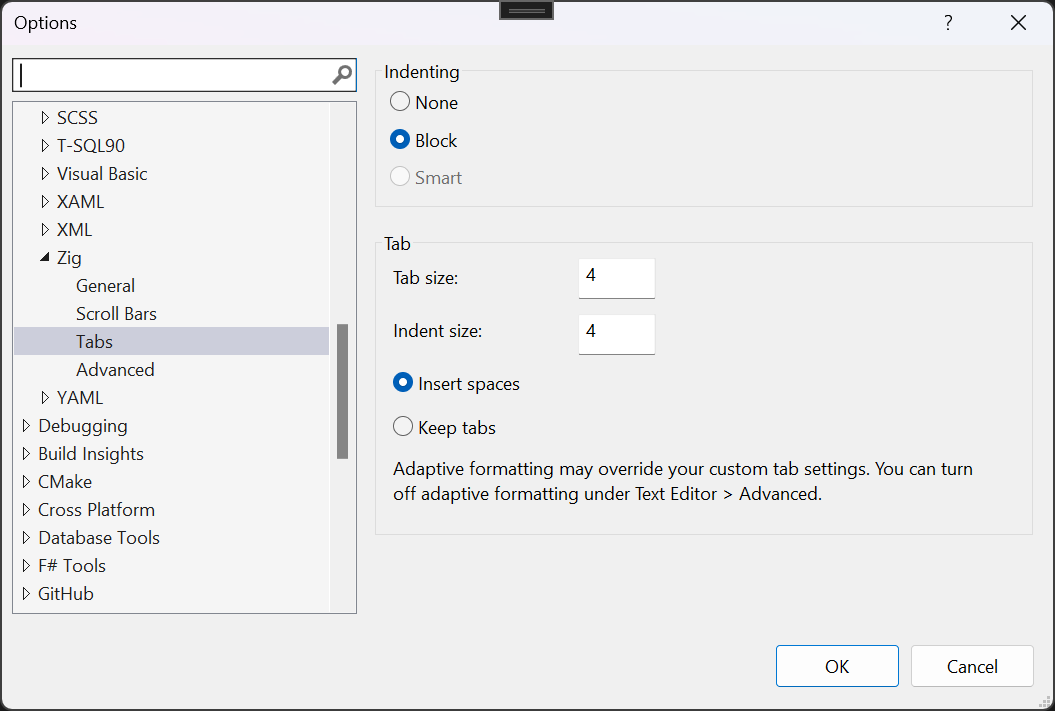

[Tools]→[Options]→[Text Editor]→[Zig]
___ # Inlay hints

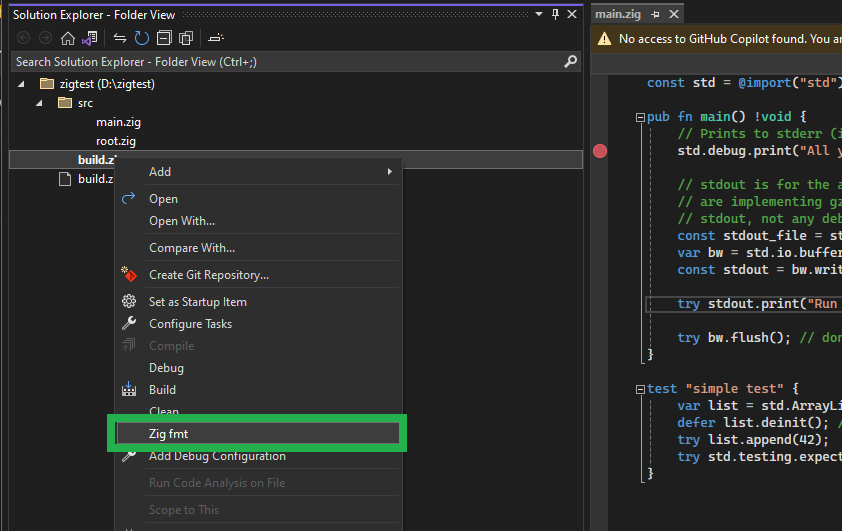

___ # Formatting Right-click in the solution explorer and
select ‘zig fmt’

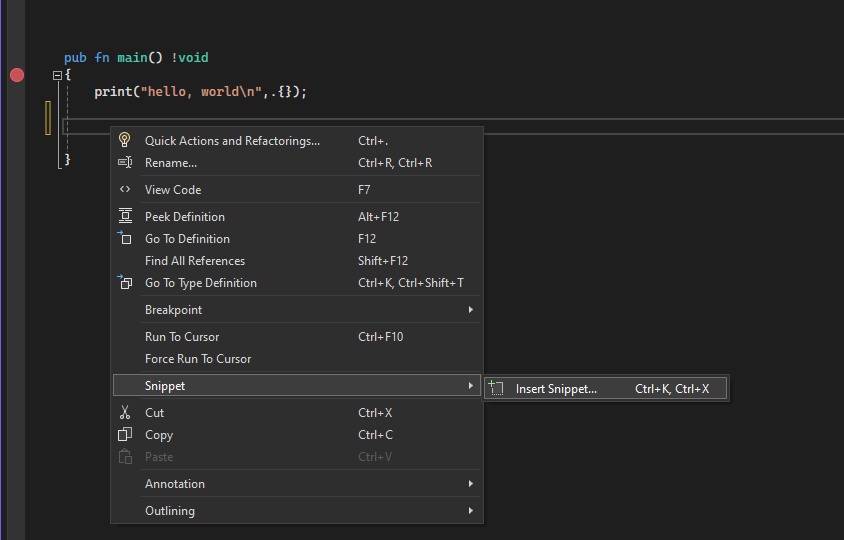

___ # Snippets

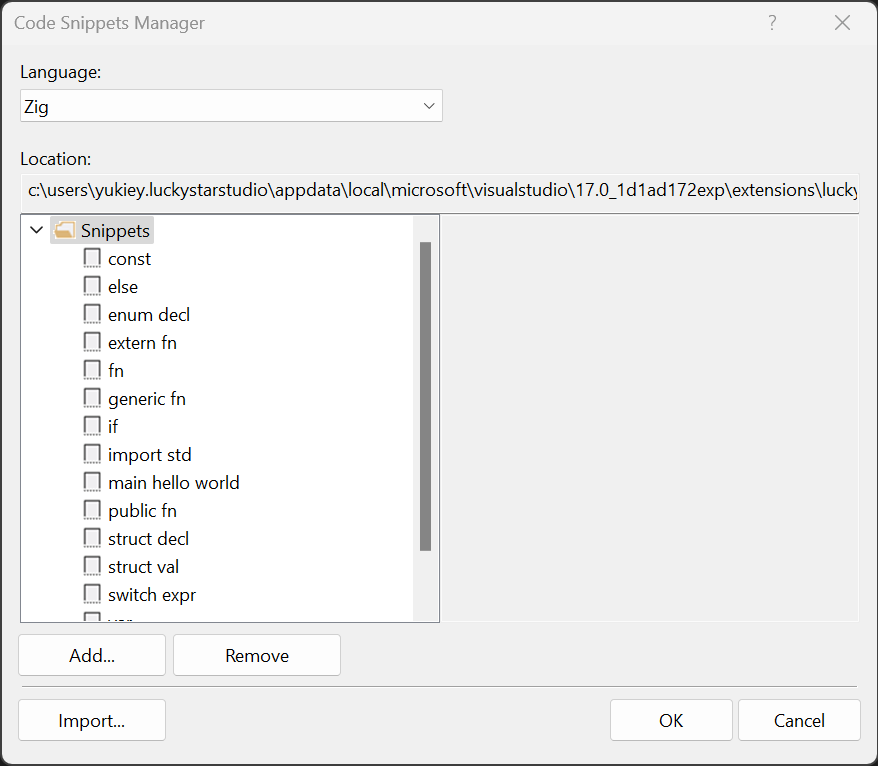

Note: Code snippets: what they are and how to add one

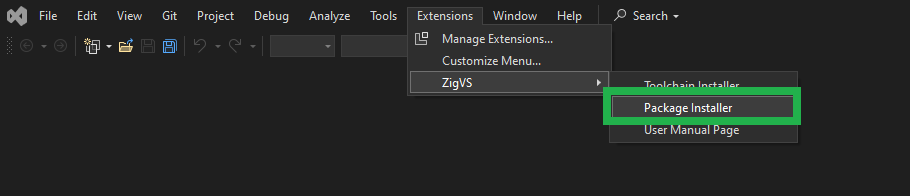

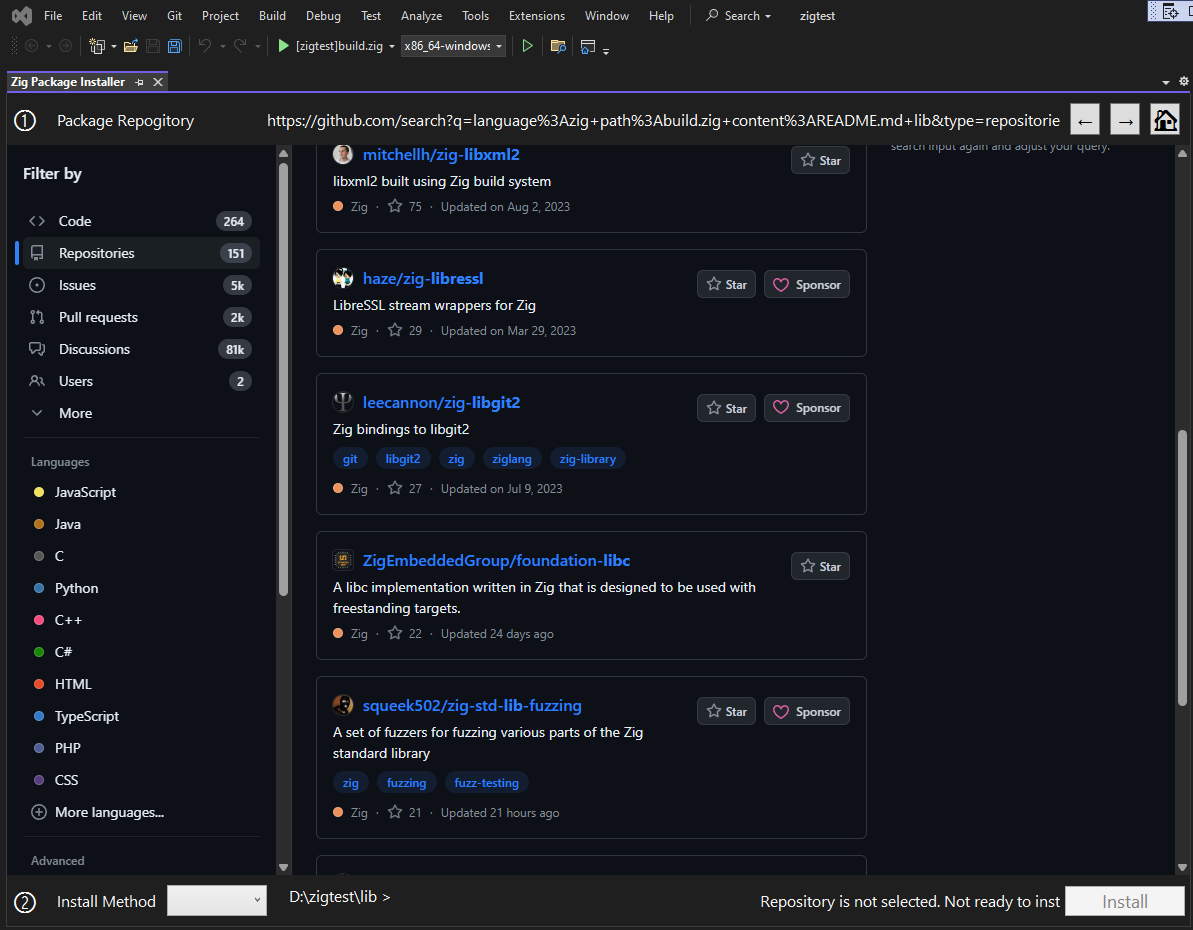

1, [Extensions] → [ZigVS] → [Zig Package Installer]
2, Browse to the repository and branch that you want to install in
the WebView.
3, Select a Installation Method from the drop down.
Currently, zig fetch, git and unzip are working correctly.
4. Once everything is set up, the Install button will become active, so
press the Install button
Open Folder Mode
Select CPU and OS from the Standard Menu bar
Project File Mode
Select CPU from the Stan dared Menu bar

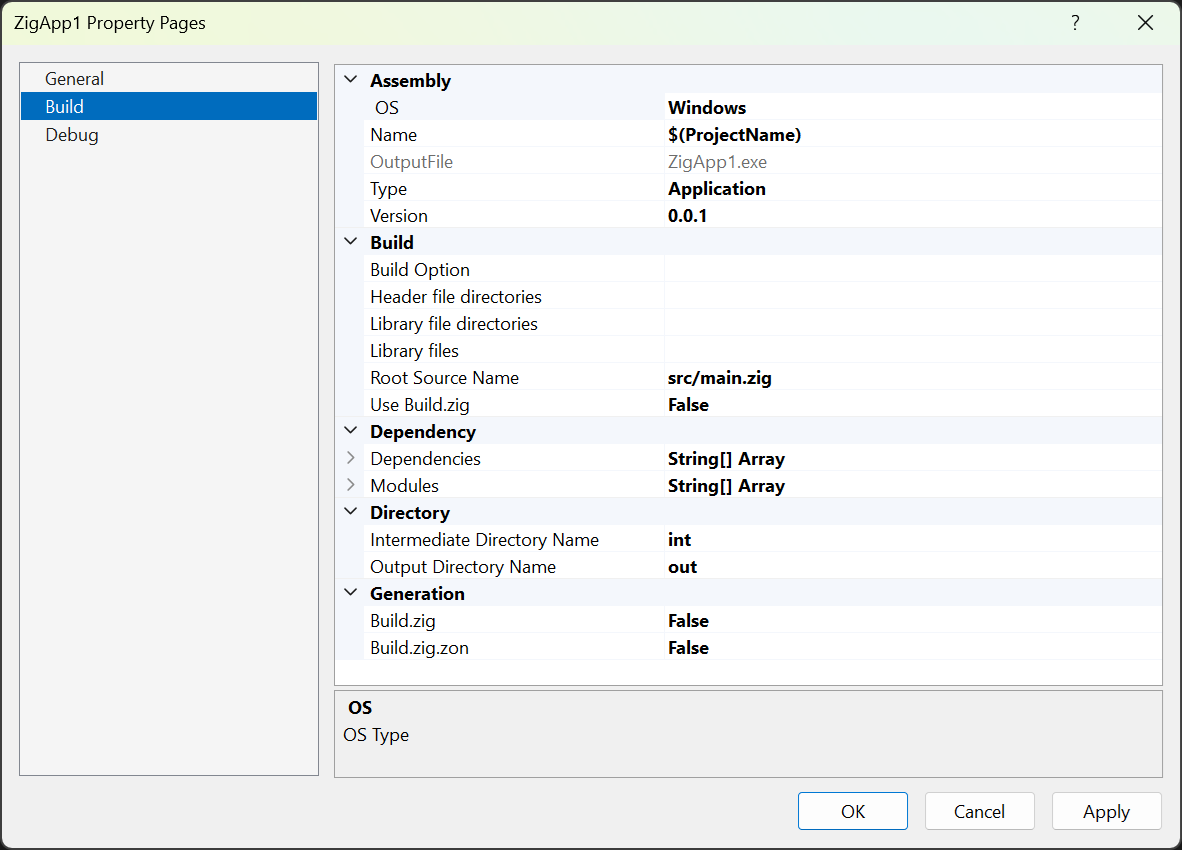

Select OS from [Project Property Page] → [Build] → [Assembly] →
[OS]
ssh-keygen -t rsa -b 4096
dir %USERPROFILE%\.ssh
sudo apt update
sudo apt install openssh-server gdb
sudo sed -i -E 's,^#?Port.*$,Port 2022,' /etc/ssh/sshd_config
sudo service ssh start
scp -P 2022 %USERPROFILE%\.ssh\id_rsa.pub [linux user name]@[linux ip address]:/home/[linux user name]/.ssh/authorized_keys
sudo service ssh restart
<?xml version="1.0" encoding="utf-8"?>
<PipeLaunchOptions xmlns="http://schemas.microsoft.com/vstudio/MDDDebuggerOptions/2014"
PipePath="C:\Windows\System32\OpenSSH\ssh.exe"
PipeArguments="-p 2022 -i C:\Users\[windows user name]\.ssh\id_rsa [linux user name]@[linux ip address] -t gdb --interpreter=mi"
TargetArchitecture="x64"
MIMode="gdb"
DebuggerPath="/usr/bin/gdb"
Environment="VAR1=value1;VAR2=value2"
ExePath="/mnt/[path to the target on windos]"
ExeArguments=""
WorkingDirectory="/home/[linux user name]"
LaunchCompleteCommand="exec-run">
<AdditionalSOLibSearchPath>/usr/lib;/usr/local/lib</AdditionalSOLibSearchPath>
</PipeLaunchOptions>
Open Folder Mode
Select OS from [Tools] → [Options] → [ZigVS] → [Folder Mode] →
[Debug]
[Debug Engine] MIEngine
[MIEngine launch Options file name] LaunchOptions.xml
Project File Mode
Select OS from [Project Property Page] → [Debug]
[Debug Engine] MIEngine
[MIEngine launch Options file name] LaunchOptions.xml
ssh-keygen -t rsa -b 4096
dir %USERPROFILE%\.ssh
sudo apt update
sudo apt install openssh-server gdb
scp %USERPROFILE%\.ssh\id_rsa.pub [linux user name]@[linux ip address]:/home/[linux user name]/.ssh/authorized_keys
sudo service ssh restart
<?xml version="1.0" encoding="utf-8"?>
<PipeLaunchOptions xmlns="http://schemas.microsoft.com/vstudio/MDDDebuggerOptions/2014"
PipePath="C:\Windows\System32\OpenSSH\ssh.exe"
PipeArguments="-p 22 -i C:\Users\[windows user name]\.ssh\id_rsa [linux user name]@[linux ip address] -t gdb --interpreter=mi"
TargetArchitecture="x64"
MIMode="gdb"
DebuggerPath="/usr/bin/gdb"
Environment="VAR1=value1;VAR2=value2"
ExePath="[path to the target on linux]"
ExeArguments=""
WorkingDirectory="/home/[linux user name]"
LaunchCompleteCommand="exec-run">
<AdditionalSOLibSearchPath>/usr/lib;/usr/local/lib</AdditionalSOLibSearchPath>
</PipeLaunchOptions>
Open Folder Mode
Select OS from [Tools] → [Options] → [ZigVS] → [Folder Mode] →
[Debug]
[Debug Engine] MIEngine
[MIEngine launch Options file name] LaunchOptions.xml
Project File Mode
Select OS from [Project Property Page] → [Debug]
[Debug Engine] MIEngine
[MIEngine launch Options file name] LaunchOptions.xml
Open Folder Mode
[Tools] → [Options] → [ZigVS] → [Folder Mode] → [Pre Debug]
[Pre Debug Command] scp [Pre Debug Command Arguments] -P 22 [target file fullpath] [Linux User Name]@[Linux Machine IP Addredd]:/home/[Linux User Name]/[your project directory]
Project File Mode
[Project Property Page] → [Debug] → [PreDebug]
[Pre Debug Command] scp [Pre Debug Command Arguments] -P 22 [target file fullpath] [Linux User Name]@[Linux Machine IP Addredd]:/home/[Linux User Name]/[your project directory]
Tips
Please check if the target file on linux has executable attribute.
The following command can be useful for troubleshooting when
things don’t work as expected.
service ssh status
grep sshd /var/log/auth.log
<?xml version="1.0" encoding="utf-8"?>
<!-- Android Launch -->
<AndroidLaunchOptions xmlns="http://schemas.microsoft.com/vstudio/MDDDebuggerOptions/2014"
Package="com.example.hellojni"
LaunchActivity=".HelloJni"
SDKRoot="c:\android-bundle\sdk"
NDKRoot="c:\android-ndk"
TargetArchitecture="arm"
IntermediateDirectory="c:\android-ndk\samples\hello-jni\obj\local\armeabi-v7a"
AdditionalSOLibSearchPath=""
DeviceId="emulator-5554"/>
<?xml version="1.0" encoding="utf-8"?>
<!-- Android Attach -->
<AndroidLaunchOptions xmlns="http://schemas.microsoft.com/vstudio/MDDDebuggerOptions/2014"
Package="com.example.hellojni"
Attach="true"
SDKRoot="c:\android-bundle\sdk"
NDKRoot="c:\android-ndk"
TargetArchitecture="arm"
IntermediateDirectory="c:\android-ndk\samples\hello-jni\obj\local\armeabi-v7a"
AdditionalSOLibSearchPath=""
DeviceId="emulator-5554"/>
<?xml version="1.0" encoding="utf-8"?>
<IOSLaunchOptions xmlns="http://schemas.microsoft.com/vstudio/MDDDebuggerOptions/2014"
RemoteMachineName="Chucks-mac-mini"
PackageId="riesco.Sample"
vcremotePort="3000"
IOSDebugTarget="device"
TargetArchitecture="x86"
AdditionalSOLibSearchPath=""/>
<?xml version="1.0" encoding="utf-8"?>
<SerialPortLaunchOptions xmlns="http://schemas.microsoft.com/vstudio/MDDDebuggerOptions/2014"
Port="COM1" TargetArchitecture="arm"/>
See User Manual Page
or

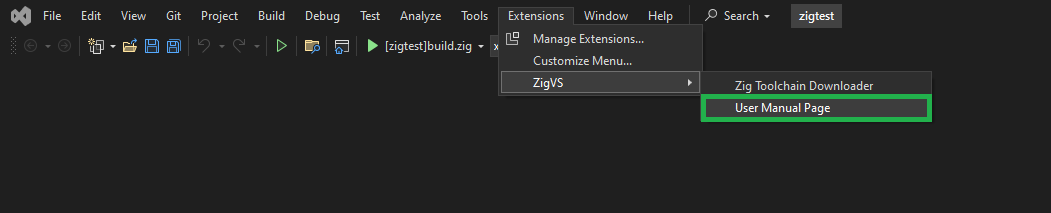

[Extensions] → [ZigVS] → [User Manual Page]
___ # Questions, Requests, etc.
Refer to the LICENSE.txt file for licensing information.
ZigVS
LuckyStar Studio LLC
Version 0.15.1.0 (2025/09/10):
Added support for Zig 0.15.1 and ZLS 0.15.0
It is no longer mandatory to add the directory containing Zig.exe to the PATH environment variable. (See the documentation for details.)
ZLS
ZLS settings under [Tools] → [Options] now take effect immediately.
Due to issues in both ZLS and Visual Studio, Inlay Hints sometimes did not work; we’ve implemented fixes/workarounds to address this as much as possible.
The Inlay Hints toggle is now Alt + F1, the same as C#.
Inlay Hints settings are now more granular and configurable.
Fixes
Fixed cases where the Toolchain Installer and Package Creator were hard to see under certain themes.
Fixed an issue where Debug settings on the project property page were not applied.
Fixed an issue where the project property page did not resize with the window.
You can now use environment variables and Visual Studio macro paths in [Tools] → [Options] and in project properties.
Fixed an issue where the Toolchain Installer created unnecessary duplicate entries in the user’s PATH.
Improvements

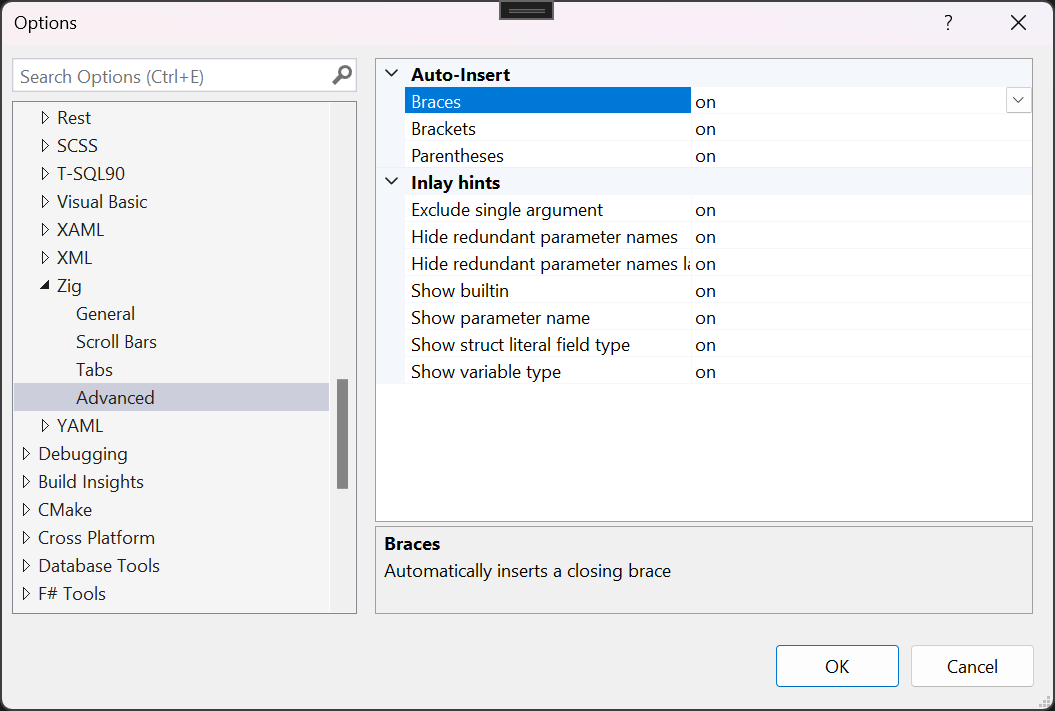

Added [Tools] → [Options] → [Text Editor] → [Zig] → [Advanced].
Compatibility:
Visual Studio 2022 17.14.13
Zig Tool chain: zig-windows-x86_64-0.15.1.zip
ZLS Language Server: zls-windows-x86_64-0.15.0.zip
Version 0.14.1.1 (2025/06/16):
Fixed a bug where incomplete support for the Zig 0.14 spec changes meant the output file name wasn’t correctly retrieved from Build.zig, preventing debugging from starting.
Added 14 code snippets.
You can now open the ZigVS GitHub page from the menu.
Compatibility:
Visual Studio 2022 17.14.3
Zig Tool chain: zig-windows-x86_64-0.14.1.zip
ZLS Language Server: zls-windows-x86_64-0.14.0.zip
Version 0.14.1.0 (2025/06/16):
Supported Zig 0.14.1.
Modifications to the file and folder layout to prepare the ZigVS source code for public release. https://github.com/luckystar-studio/ZigVS
Compatibility:
Visual Studio 2022 17.14.3
Zig Tool chain: zig-windows-x86_64-0.14.1.zip
ZLS Language Server: zls-windows-x86_64-0.14.0.zip
Version 0.14.0.1 (2025/03/07):
Supported Zig 0.14.0.
The compatibility issue between Visual Studio 2022 and ZLS has been resolved, so there is no longer a need to use a special version of ZLS.
Compatibility:
Visual Studio 2022 17.13.2
Zig Tool chain: zig-windows-x86_64-0.14.0.zip
ZLS Language Server: zls-windows-x86_64-0.14.0.zip
Version 0.13.0.13 (2025/02/22):
We modified the behavior so that if the Output window is not displayed when running the tool-chain or package installer, it will be shown automatically. This ensures that progress can be monitored.
Automatically insert the corresponding closing character when pressing (, {, or [ under certain conditions.
Compatibility:
Visual Studio 2022 17.13.1
Zig Tool chain: zig-windows-x86_64-0.13.0.zip
ZLS Language Server: 0.13.0.VisualStudioCompatible
Version 0.13.0.12 (2024/08/17):
The user manual for ZigVS, which was included in the Visual Studio extension package,
has been removed from the package to reduce its size by hosting it on GitHub.
Updated the packages that ZigVS depends on.
Corrected some spelling errors.
Fixed minor bugs.
Compatibility:
Visual Studio 2022 17.11.0
Zig Tool chain: zig-windows-x86_64-0.13.0.zip
ZLS Language Server: 0.13.0.VisualStudioCompatible
Version 0.13.0.11 (2024/08/15):
In the previous version of ZigVS, unit tests could only be managed and executed on
a file-by-file basis from the Test Explorer. Now, they can be managed and executed individually.
Additionally, it is now possible to debug unit tests from the Test Explorer.
Compatibility:
Visual Studio 2022 17.10.5
Zig Tool chain: zig-windows-x86_64-0.13.0.zip
ZLS Language Server: 0.13.0.VisualStudioCompatible
Version 0.13.0.10 (2024/08/11):
You can now toggle inlay hints on and off using Alt + F1.
We fixed the issue where typing '_' would prematurely end the completion.
Compatibility:
Visual Studio 2022 17.10.5
Zig Tool chain: zig-windows-x86_64-0.13.0.zip
ZLS Language Server: 0.13.0.VisualStudioCompatible
Version 0.13.0.9 (2024/07/08):
In Open Folder mode
The debugger and tests now function correctly even when you open a folder higher than the one containing build.zig.
We have accelerated the startup of the debugger from the second time onward.
Compatibility:
Visual Studio 2022 17.10.3
Zig Tool chain: zig-windows-x86_64-0.13.0.zip
ZLS Language Server: 0.13.0.VisualStudioCompatible
Version 0.13.0.7 (2024/07/07):
Due to a bug in the extension installer, an exception occurred when creating a new project unless the user manually installed Desktop Development with C++. We have fixed the installer to ensure that the necessary components are installed automatically.
We have improved the error messages to make the situation clearer when zig.exe or zls.exe cannot be found.
We have made the behavior of the key to confirm auto-complete similar to C#.
Compatibility:
Visual Studio 2022 17.10.3
Zig Tool chain: zig-windows-x86_64-0.13.0.zip
ZLS Language Server: 0.13.0.VisualStudioCompatible
Version 0.13.0.3 (2024/06/18):
We have fixed the issue where you had to type the key twice for auto complete.
Compatibility:
Visual Studio 2022 17.10.1
Zig Tool chain: zig-windows-x86_64-0.13.0.zip
ZLS Language Server: 0.13.0.VisualStudioCompatible
Version 0.13.0.2 (2024/06/17):
You can now create a new Zig package by going to [File] → [New] → [Zig Package].
The project template now includes build.zig, so the project can be built from both build.zig and .zigproj files.
Compatibility:
Visual Studio 2022 17.10.1
Zig Tool chain: zig-windows-x86_64-0.13.0.zip
ZLS Language Server: 0.13.0.VisualStudioCompatible
Version 0.13.0.1 (2024/06/11):
We have released the compatible ZIGVS version due to the release of ZIG and ZLS version 0.13.0.
We have added support for building WebAssembly (WASM).
We have modified the message for cases where tests are skipped due to compilation errors.
We have improved the icons and logos.
Compatibility:
Visual Studio 2022 17.10.1
Zig Tool chain: zig-windows-x86_64-0.13.0.zip
ZLS Language Server: 0.13.0.VisualStudioCompatible
Version 0.12.0.4 (2024/05/26):
1, The project file generated for new projects now supports incremental builds. This prevents unnecessary zig builds.
2, The UI for setting modules in the project properties has been changed to allow multi-line editing instead of a single line.
3, The 'zig fetch' command now runs correctly for package installation through the package installer. Previously, the command was given a GitHub zip file, but zig couldn't handle the zip properly. Switching to .tar.gz resolved the issue.
Compatibility:
Visual Studio 2022 17.10.0
Zig Tool chain: zig-windows-x86_64-0.12.0.zip
ZLS Language Server: 0.12.0.VisualStudioCompatible
Version 0.12.0.3 (2024/05/23):
We have added an explanation on how to further color-code using Syntax Highlighting.
To fix the issue with ZLS not functioning correctly, the recommended setup method for the Zig Tool chain has been changed from using the ZIG_TOOL_PATH environment variable to using the PATH environment variable. Consequently, the installer has also been modified to set the PATH.
Compatibility:
Visual Studio 2022 17.10.0
Zig Tool chain: zig-windows-x86_64-0.12.0.zip
ZLS Language Server: 0.12.0.VisualStudioCompatible
Version 0.12.0.2 (2024/05/13):
In ZigVS unit tests, we use the 'zig.exe test' command,
but the result output format of the test command was changed in Zig 0.12.0.
We have fixed cases where ZigVS could not correctly retrieve the test results.
Additionally, if the output of 'zig.exe test' changes in the future and ZigVS can no longer read it,
an error message will now be displayed to indicate this.
Compatibility:
Visual Studio 2022 17.9.6
Zig Tool chain: zig-windows-x86_64-0.12.0.zip
ZLS Language Server: 0.12.0.VisualStudioCompatible
Version 0.12.0.1 (2024/05/07):
We have released the compatible ZIGVS version due to the release of ZIG and ZLS version 0.12.0.
Replace zig logo
Compatibility:
Visual Studio 2022 17.9.6
Zig Tool chain: zig-windows-x86_64-0.12.0.zip
ZLS Language Server: 0.12.0.VisualStudioCompatible
Version 0.1.8 (2024/03/23):
cross-platform build and debug
fix a bug ZigVS disables CMake Project Debugger
Compatibility:
Visual Studio 2022 17.9.3
Zig Tool chain: zig-windows-x86_64-0.12.0-dev.1849+bb0f7d55e.zip
ZLS Language Server: 0.12.0.VisualStudioCompatible
Version 0.1.6 (2024/02/24):
Add Package Installer
Compatibility:
Visual Studio 2022 17.9
Zig Tool chain: zig-windows-x86_64-0.12.0-dev.1849+bb0f7d55e.zip
ZLS Language Server: 0.12.0.VisualStudioCompatible
Version 0.1.5 (2024/01/28):
Support Visual Studio Profiling Tools
Minor Bug fix
Compatibility:
Visual Studio 2022 17.8.5
Zig Tool chain: zig-windows-x86_64-0.12.0-dev.1849+bb0f7d55e.zip
ZLS Language Server: 0.12.0.VisualStudioCompatible
Version 0.1.4 (2024/01/21):
Add Snippets Manager
Version 0.1.3.1 (2024/01/14):
ToolChainInstaller
Check if install path already exists
Extract empty directories during install
Version 0.1.3 (2024/01/14):
Project Property
Header files directory field handles both relative and absolute paths
Add library list and library directory fields
Implemented modules and dependencies field
Fix an issue where the User Manual does not appear in some cases
Add Zig Tool chain Installer Window
Version 0.1.2 (2024/01/07):
Add file icon
Support document formatting
Version 0.1.1 (2023/12/30):
Fixed not being able to specify the output destination in project mode
Add editor settings
Version 0.1 (2023/12/26):
Initial release
Compatibility:
Zig Tool chain: zig-windows-x86_64-0.12.0-dev.1849+bb0f7d55e.zip
ZLS Language Server: 0.12.0.VisualStudioCompatible
